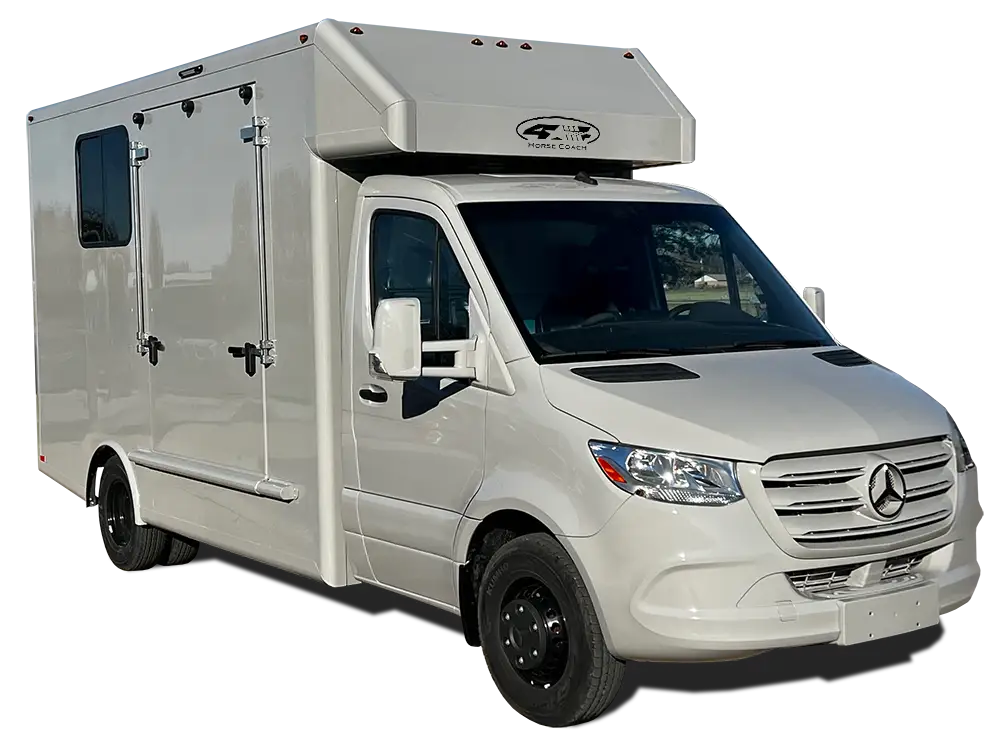

4-Star Van Specs
Our 2.0L I4 Turbo Diesel Mercedes Sprinter Vehicles are the perfect combination of payload capacity and horsepower. Quiet Ride Technology dampens loud road noise, engine rumble, and sudden mechanical sounds which can cause anxiety or panic – creating a calmer, more peaceful environment inside the coach.
Standard Dimensions:
Long Box: 14 ft
Width: 80 in
Height: 7 ft 6 in

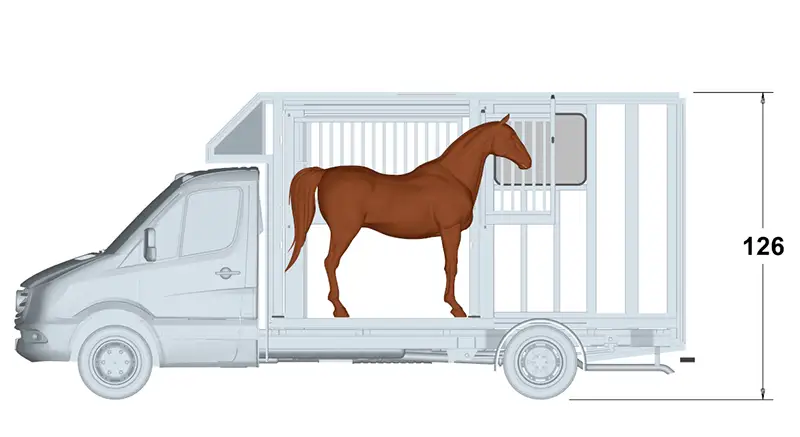

Overall Dimensions:
Length: 273 in
Width: 85 in
Height: 126 in

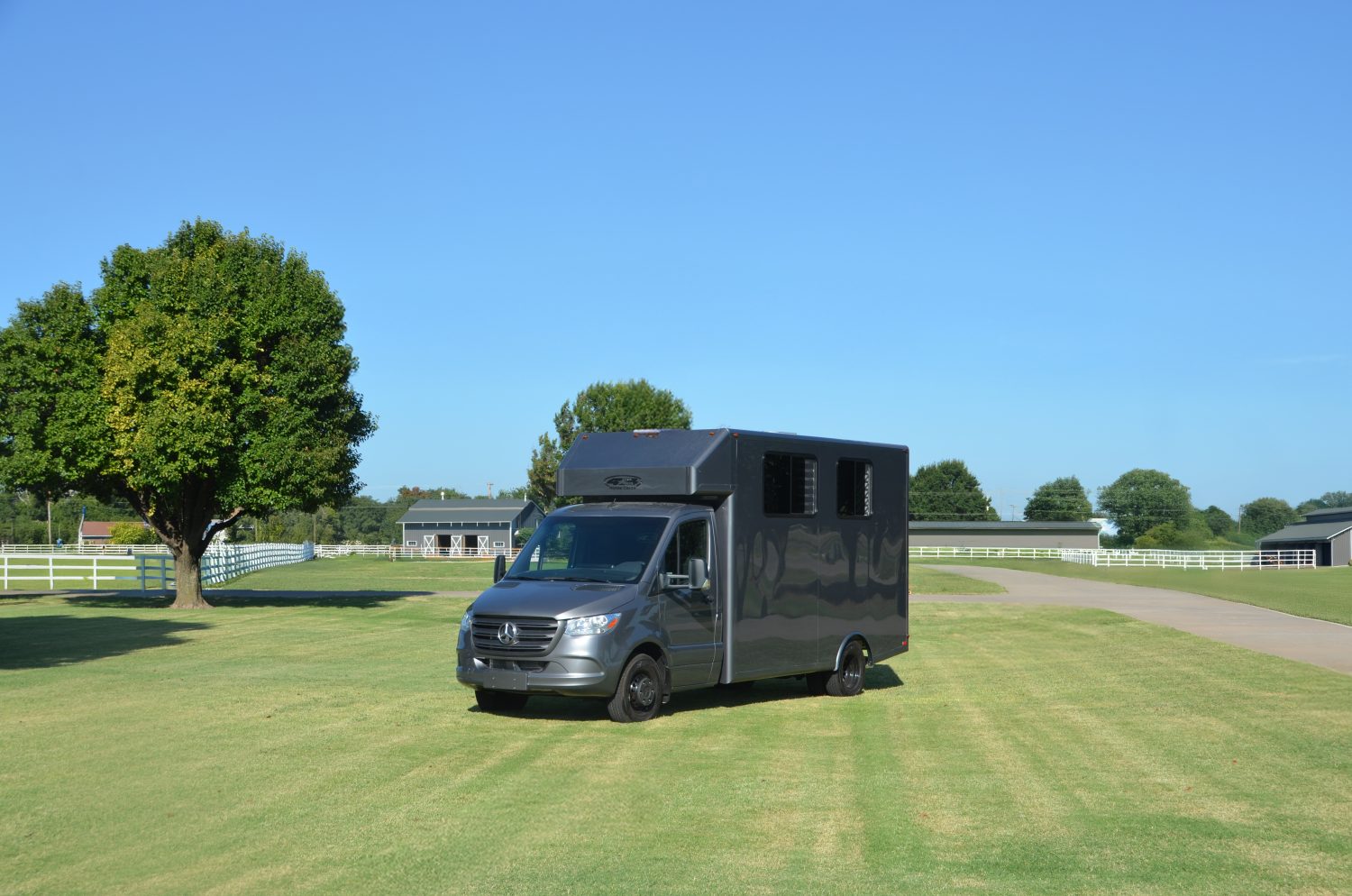

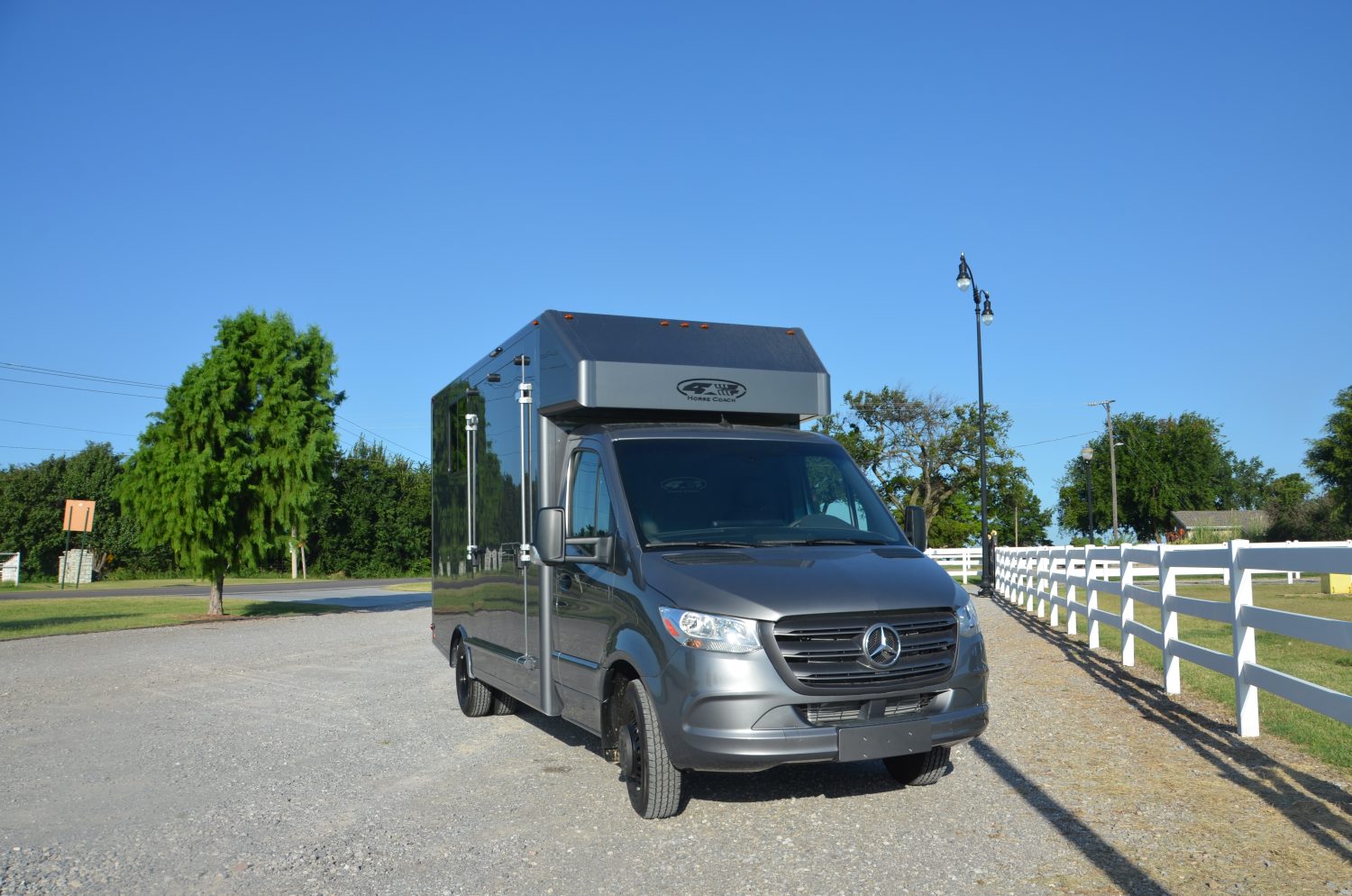

Van Gallery
Exterior
- Painted Exterior on .080 Thick Aluminum
- Painted Roof on .080 Thick Aluminum
- 28 x 36 Head Window Each Horse
- 28 x 48 Hip Window on Drivers Side

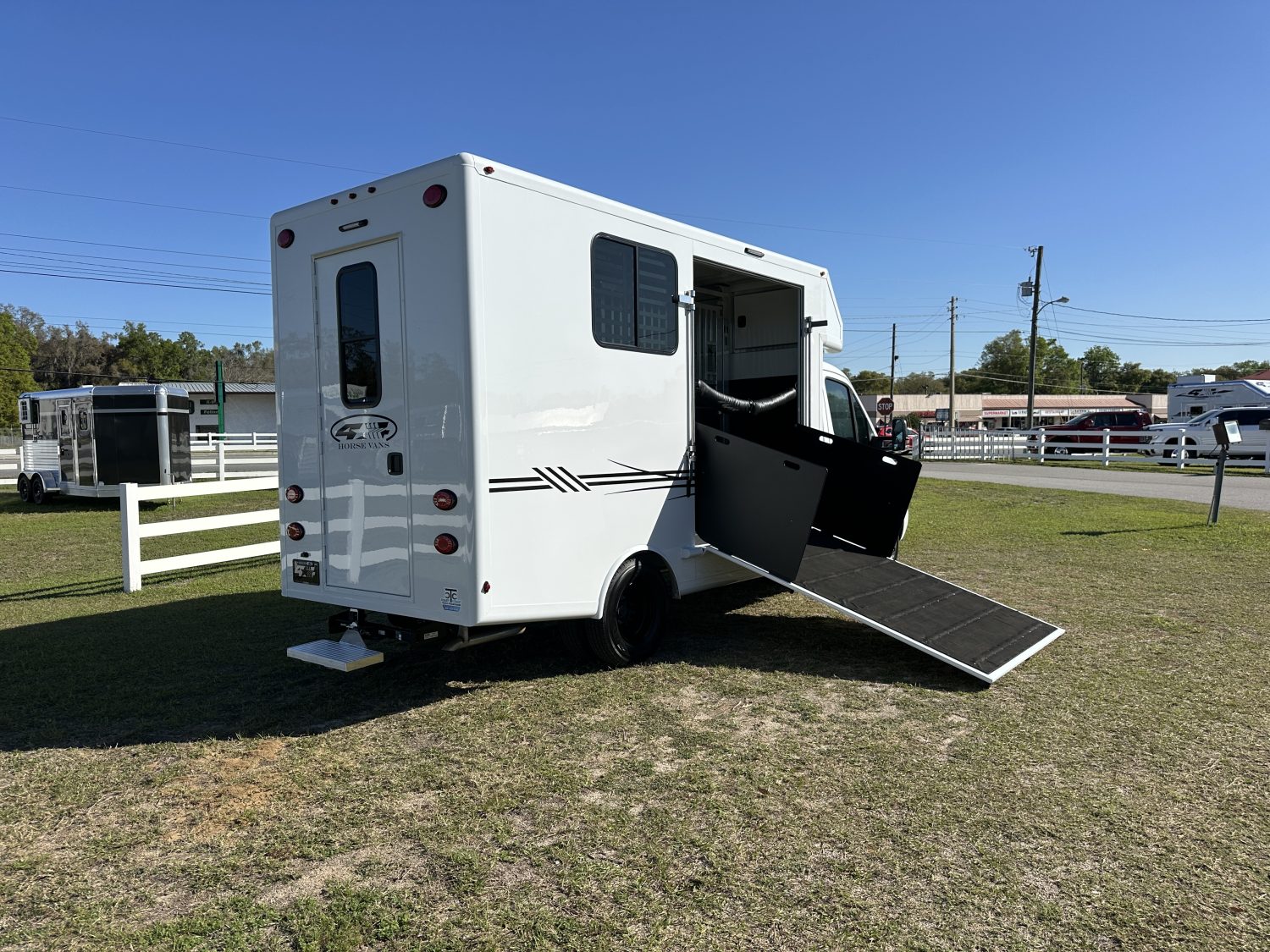

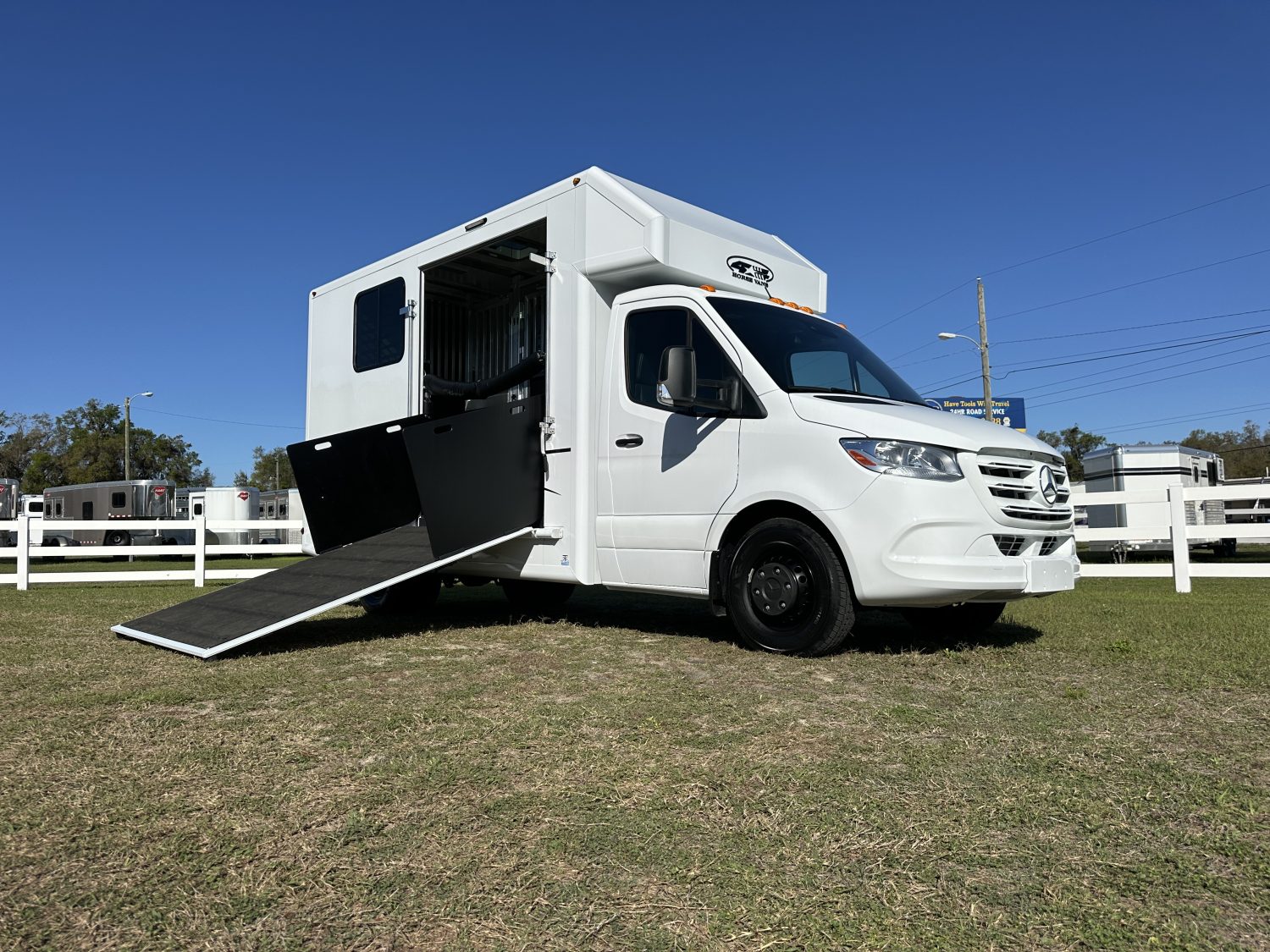

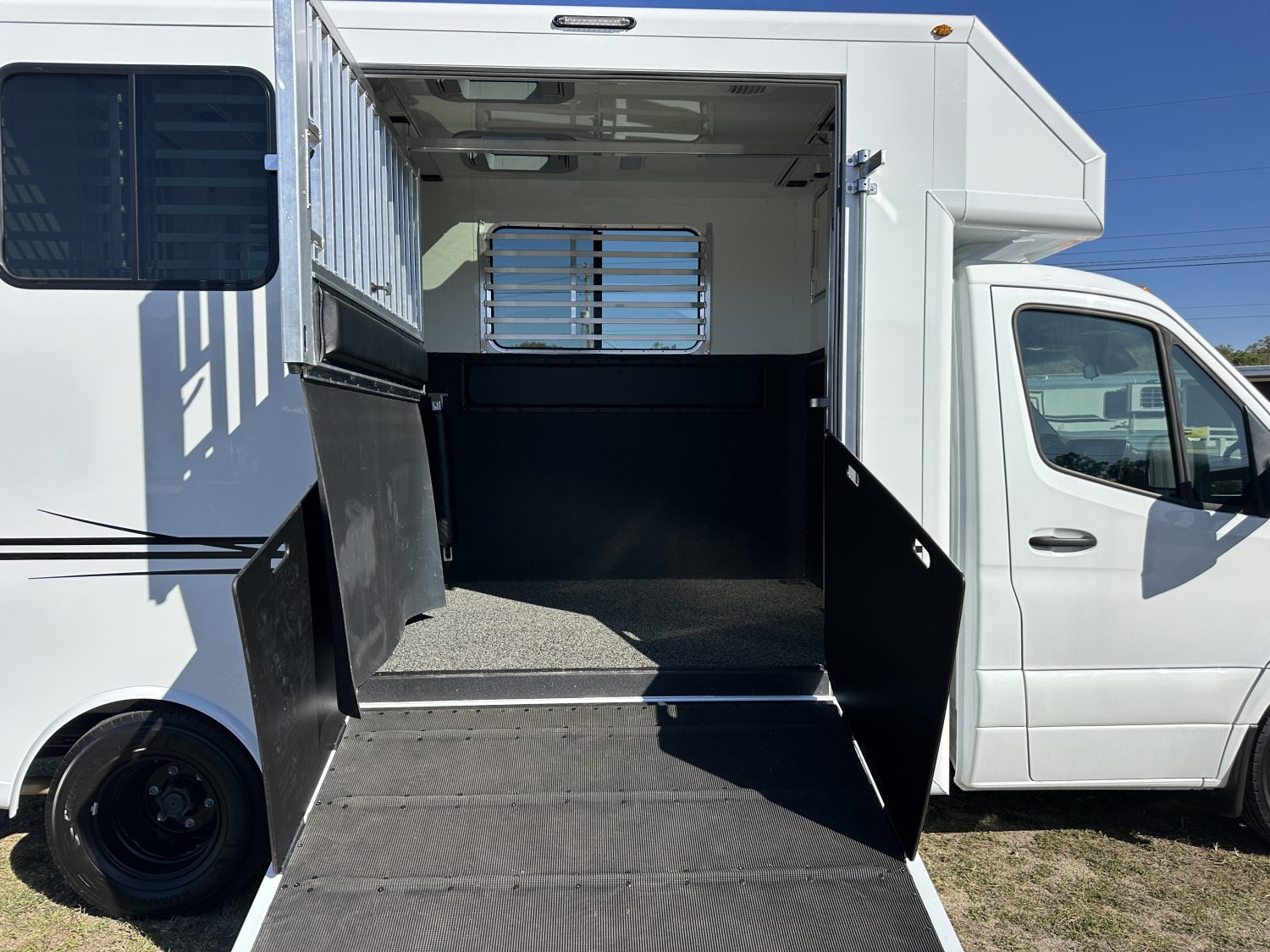

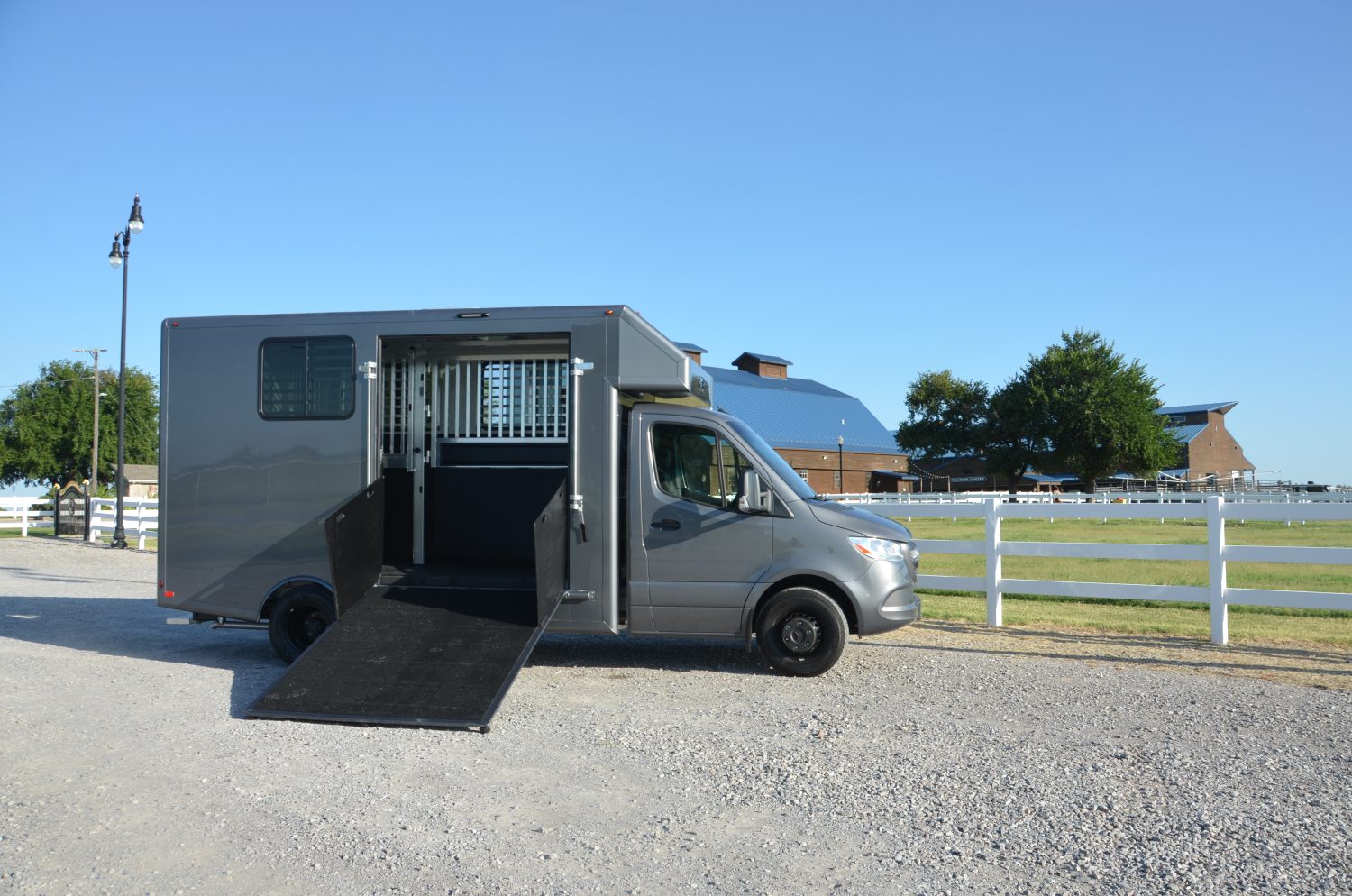

- Full Height x 68″ Width EZ-Lift Side Ramp
- LED Marker and Tail Lights
- (2) LED Awning Light
- Receiver Hitch w/Step

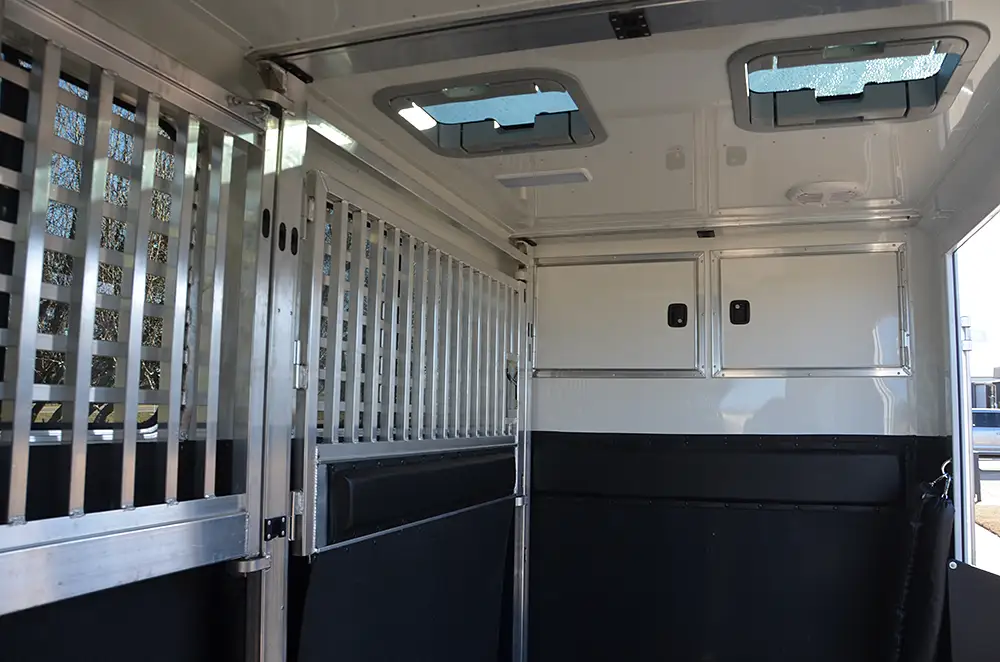

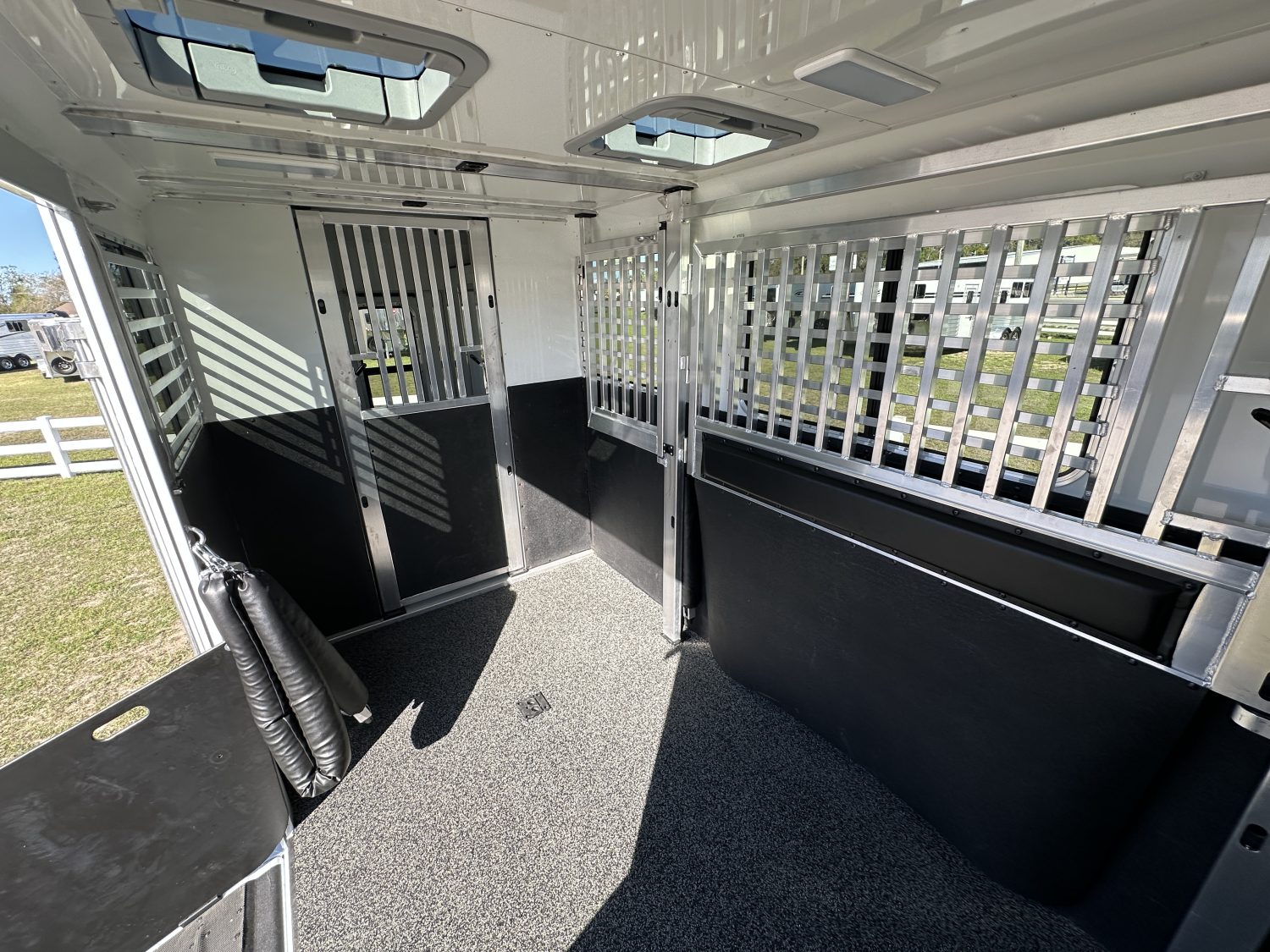

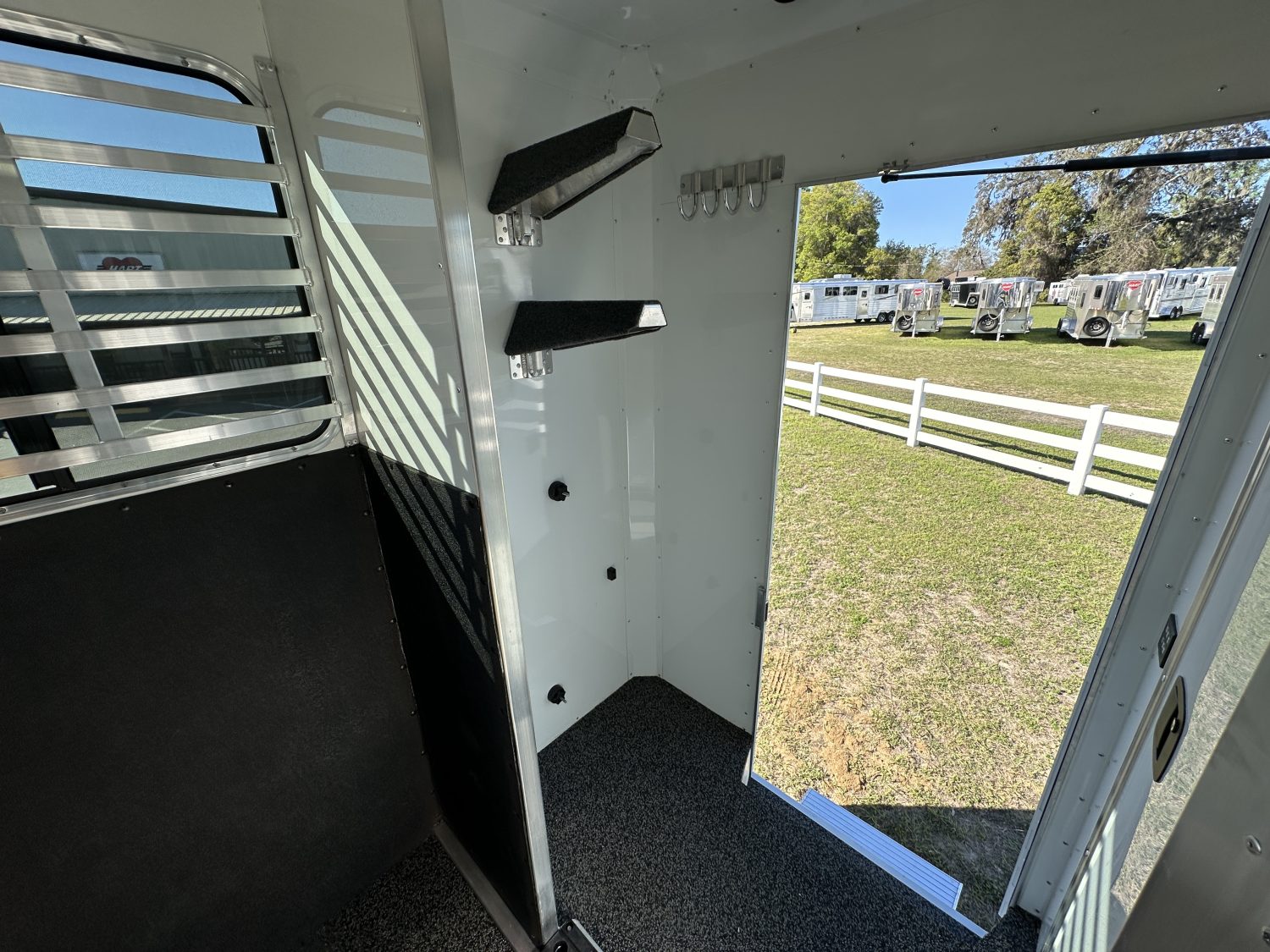

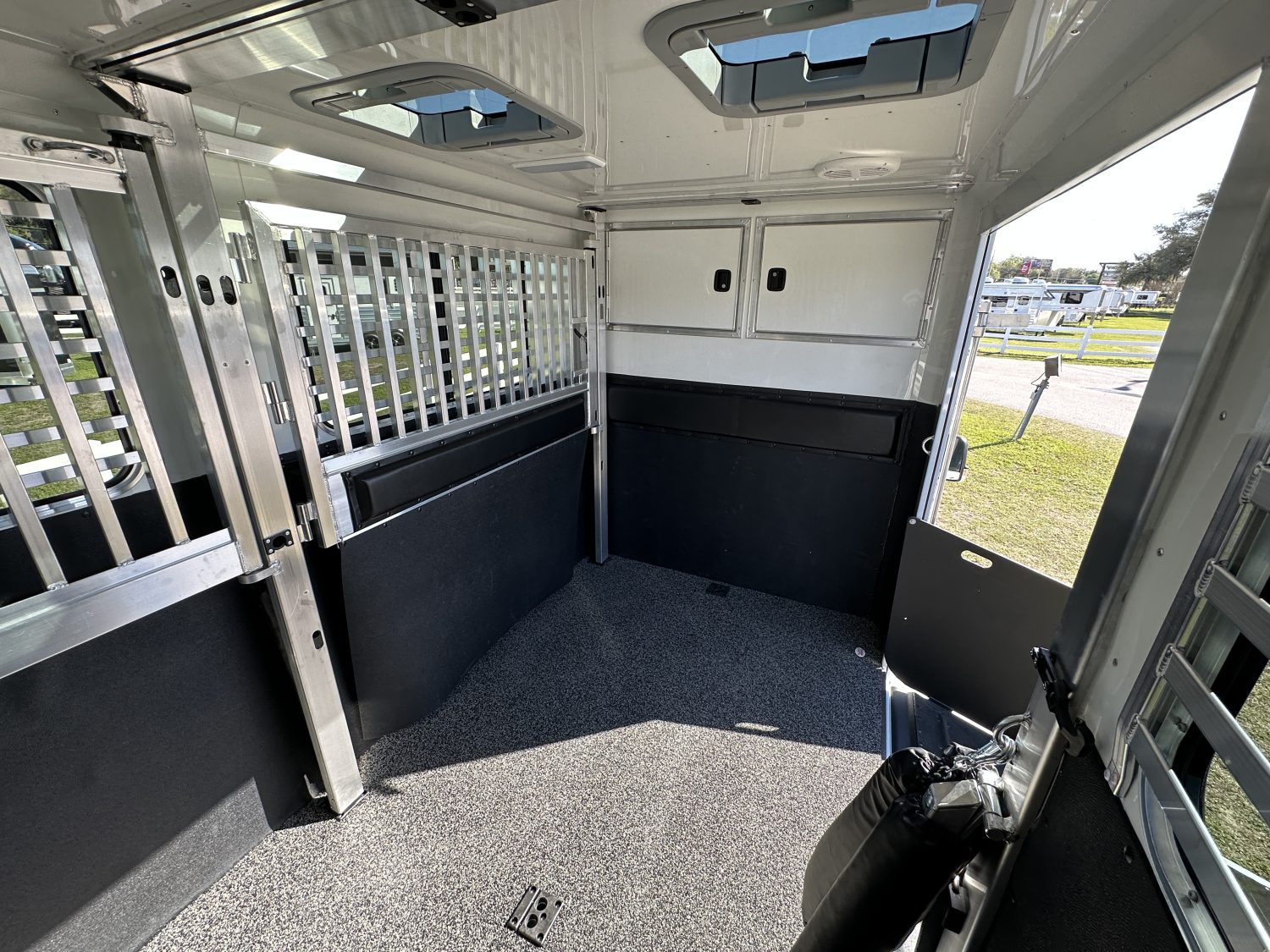

Interior
- Insulated & Double Walled on Side Walls
- Rubber Lined Walls in Horse Compartment
- Extruded Aluminum Floor
- WERM Flooring Full Length

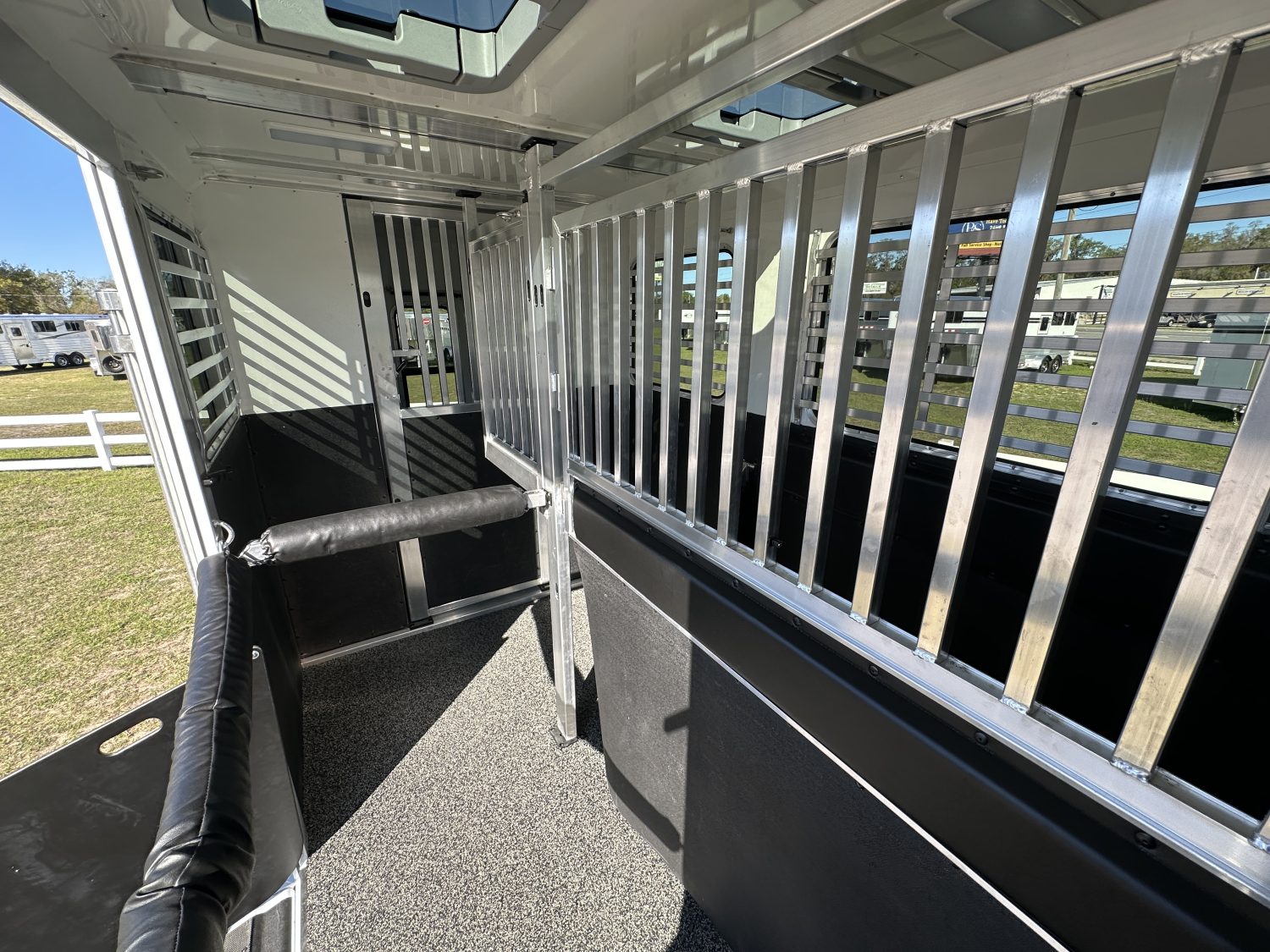

- Swinging Quiet Ride Rolling Divider Full @ Top w/Bars & Hanging Rubber Mat
- 82 1/2″ Stall
- 45″ Head Stall
- Heavy Duty Window Bars
- 3-Way Roof Vent Per Horse
- (2) Inside Horse Ties
- (2) Quiet Ride Breast Bars
- (3) LED Interior Lights White/Blue
- (1) 2 Way Electric Roof Fan

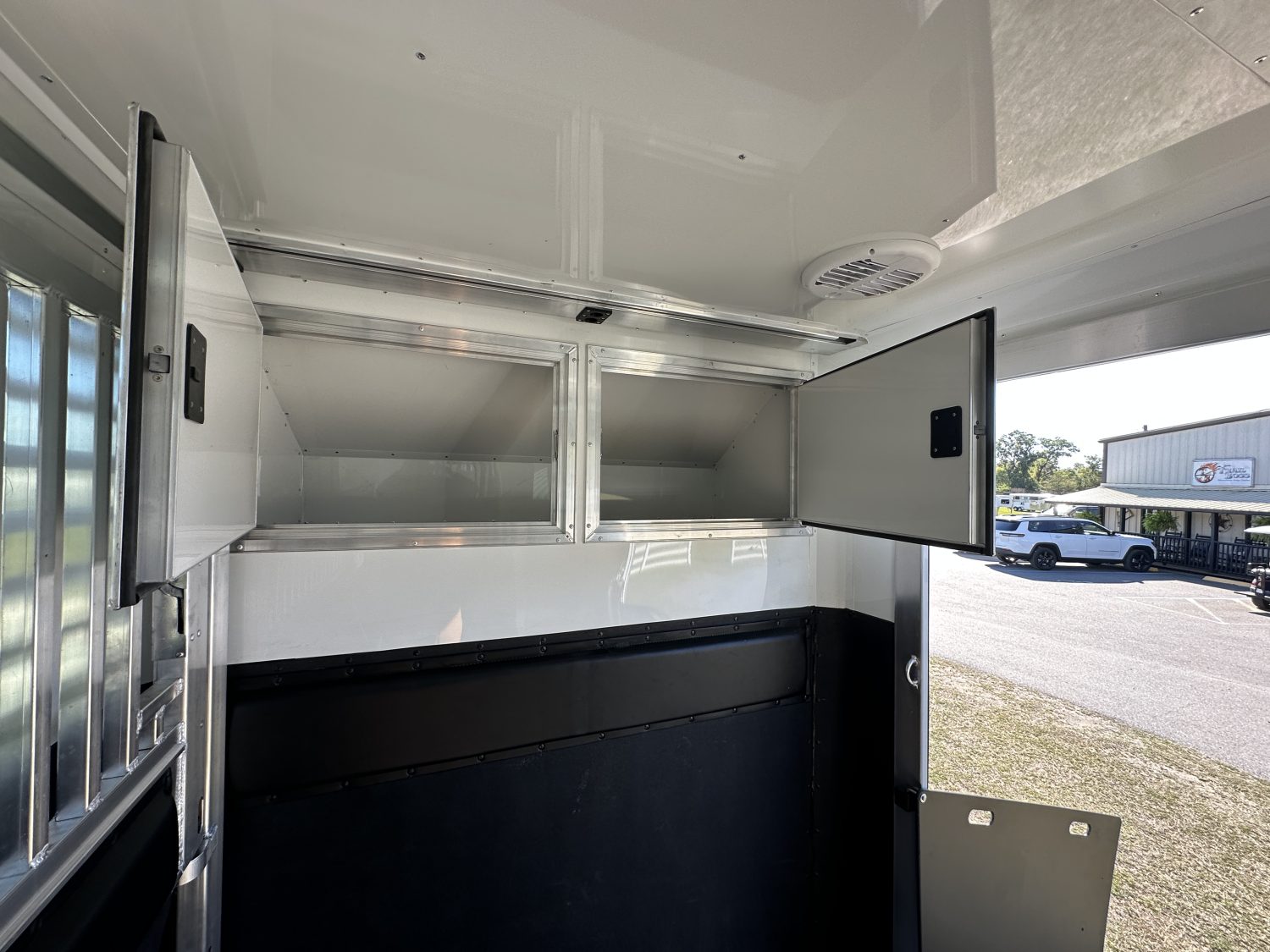

- Overhead Storage Compartment w/Double Doors

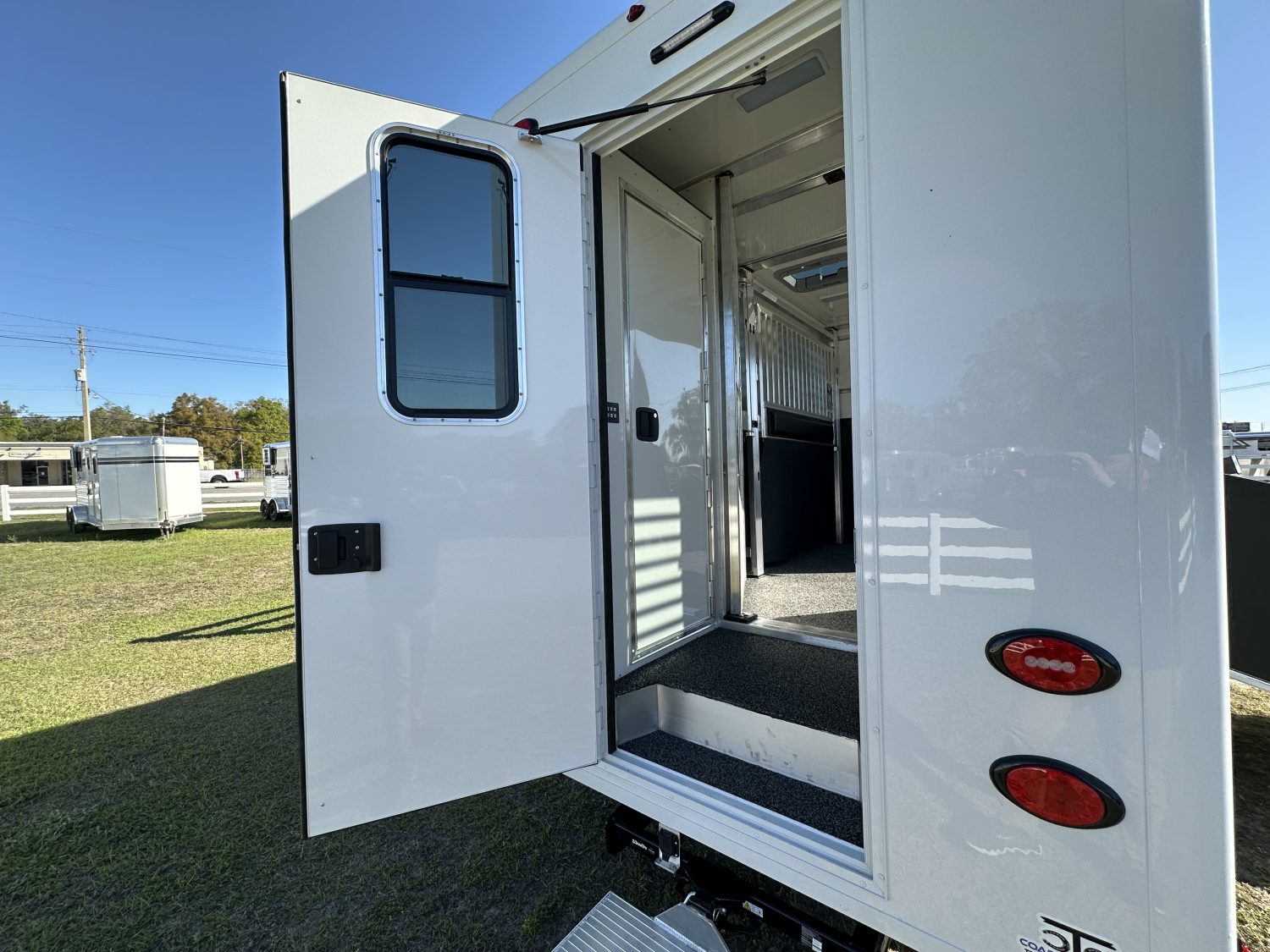

- Rear Door w/Gas Shock

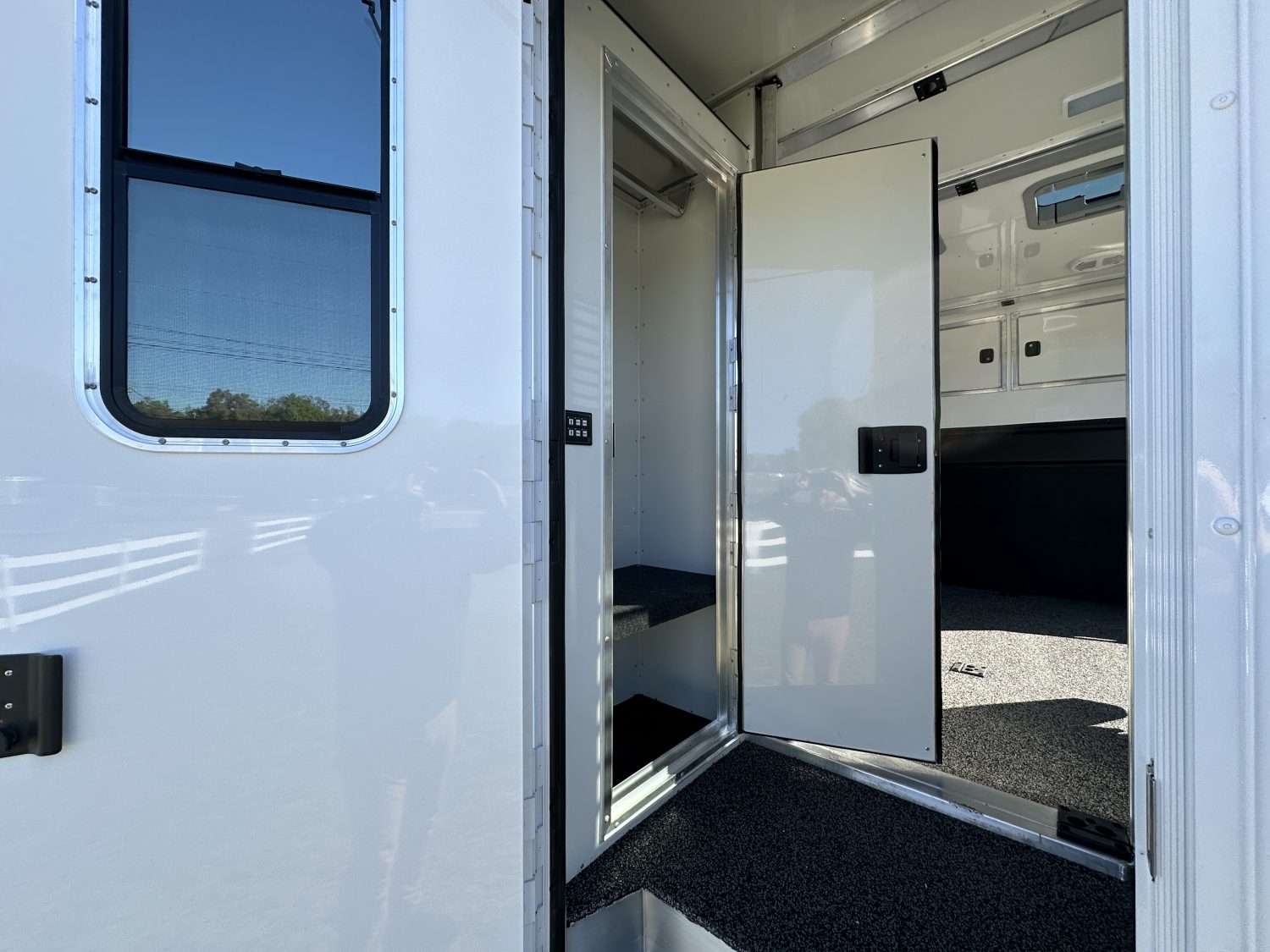

- Quiet Ride Double Swing Bulkhead Wall Door
- (2) Saddle Racks
- (4) Bridle Hooks

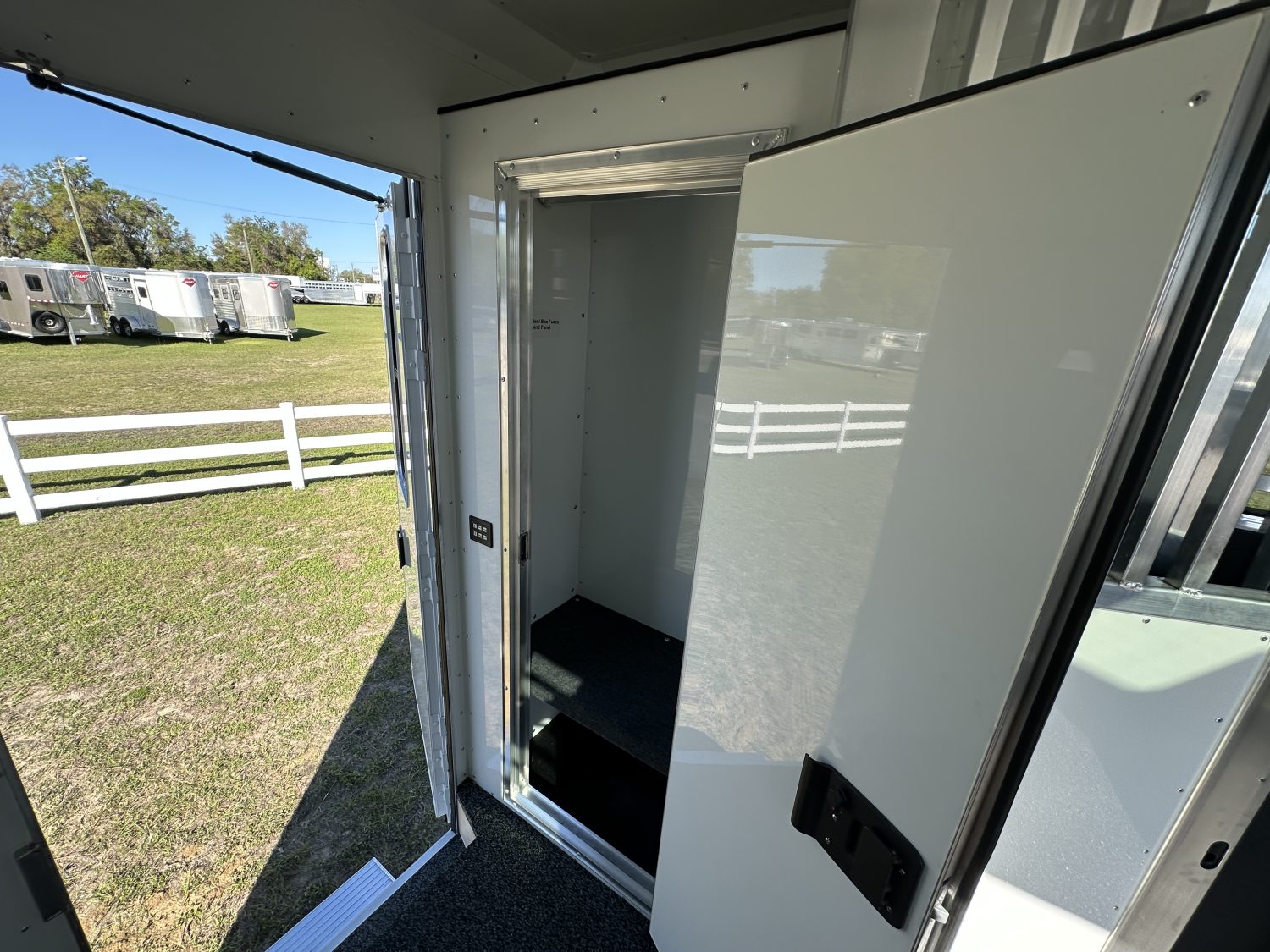

- Closet with clothes rod

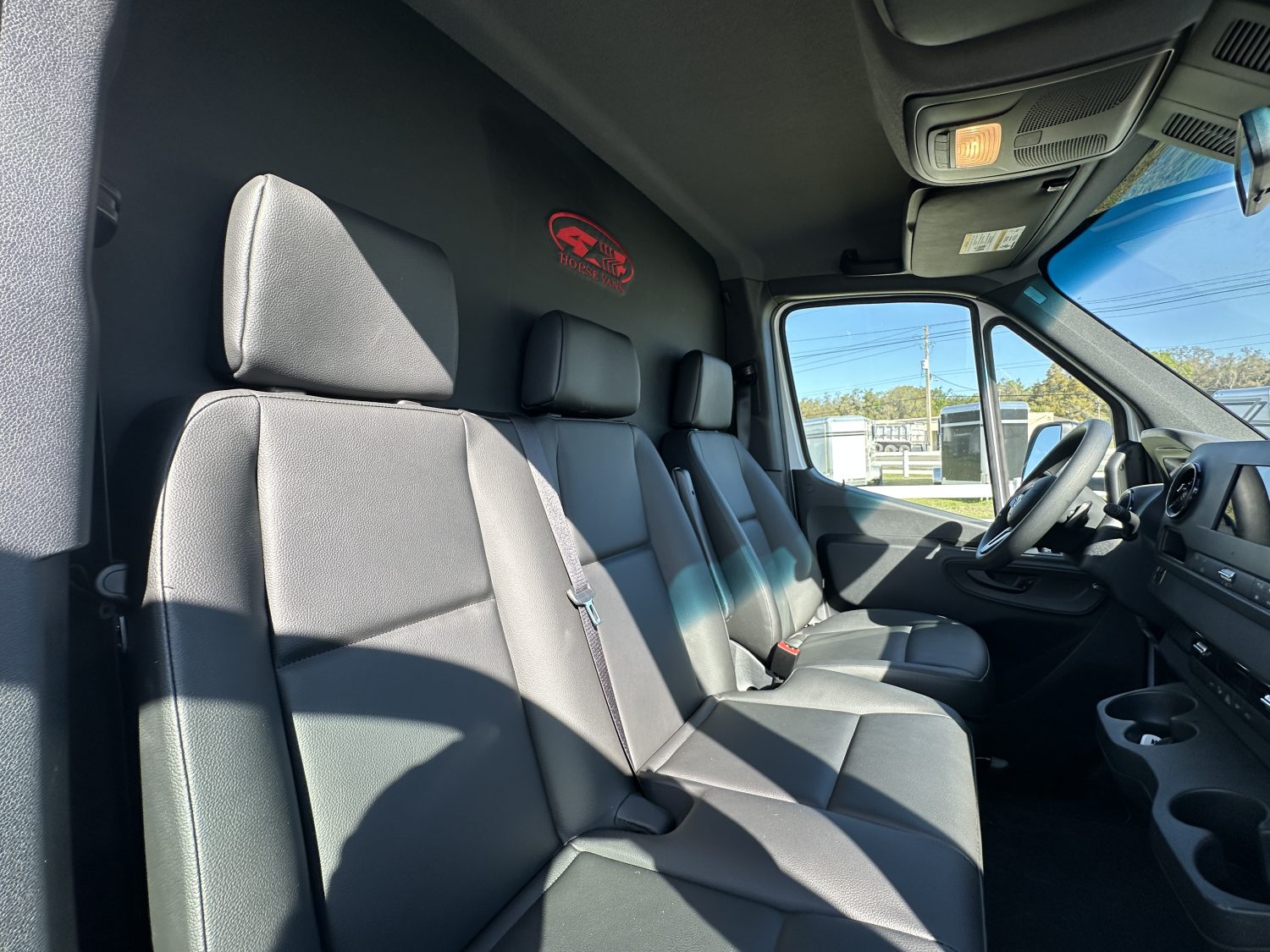

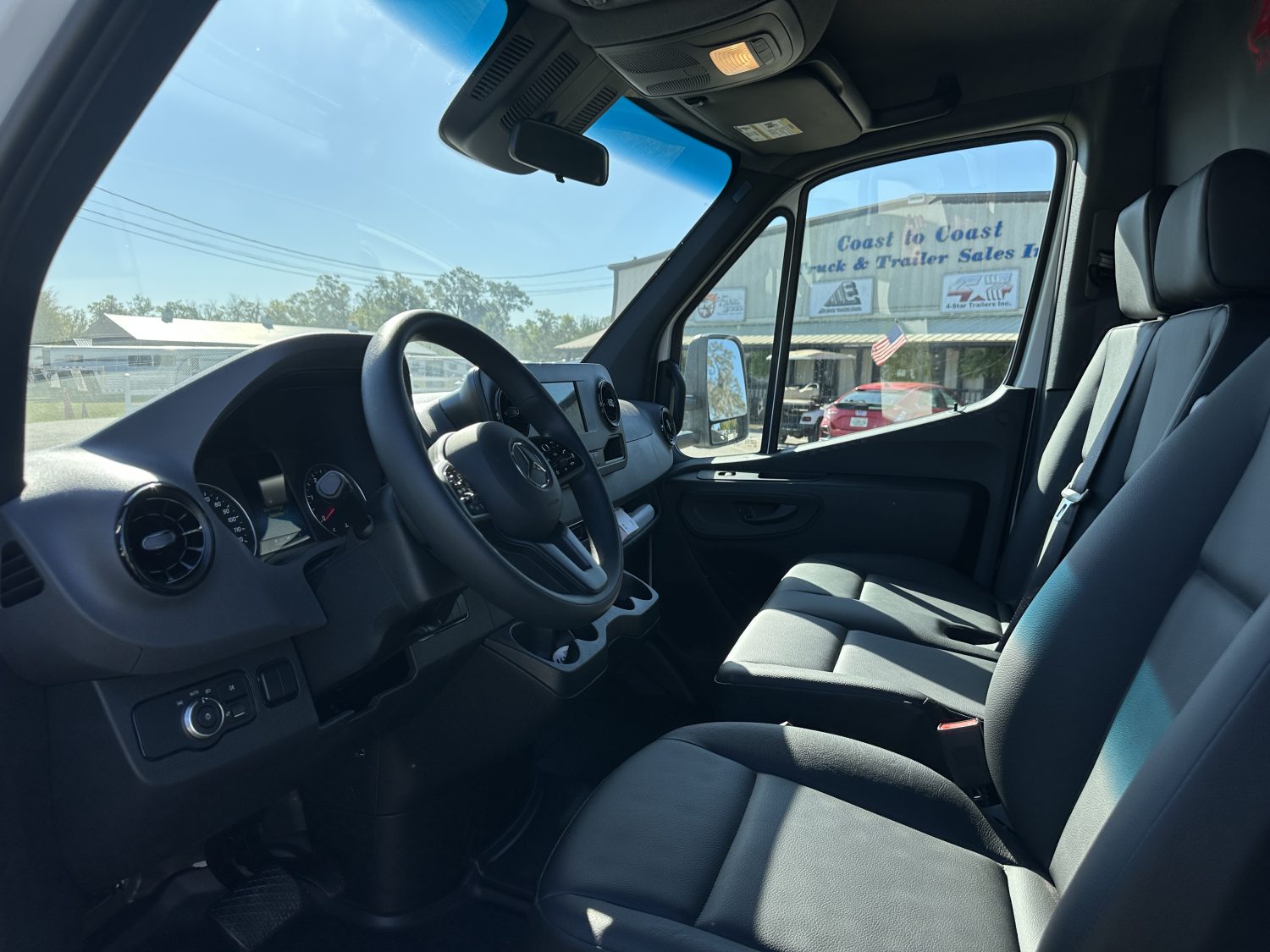

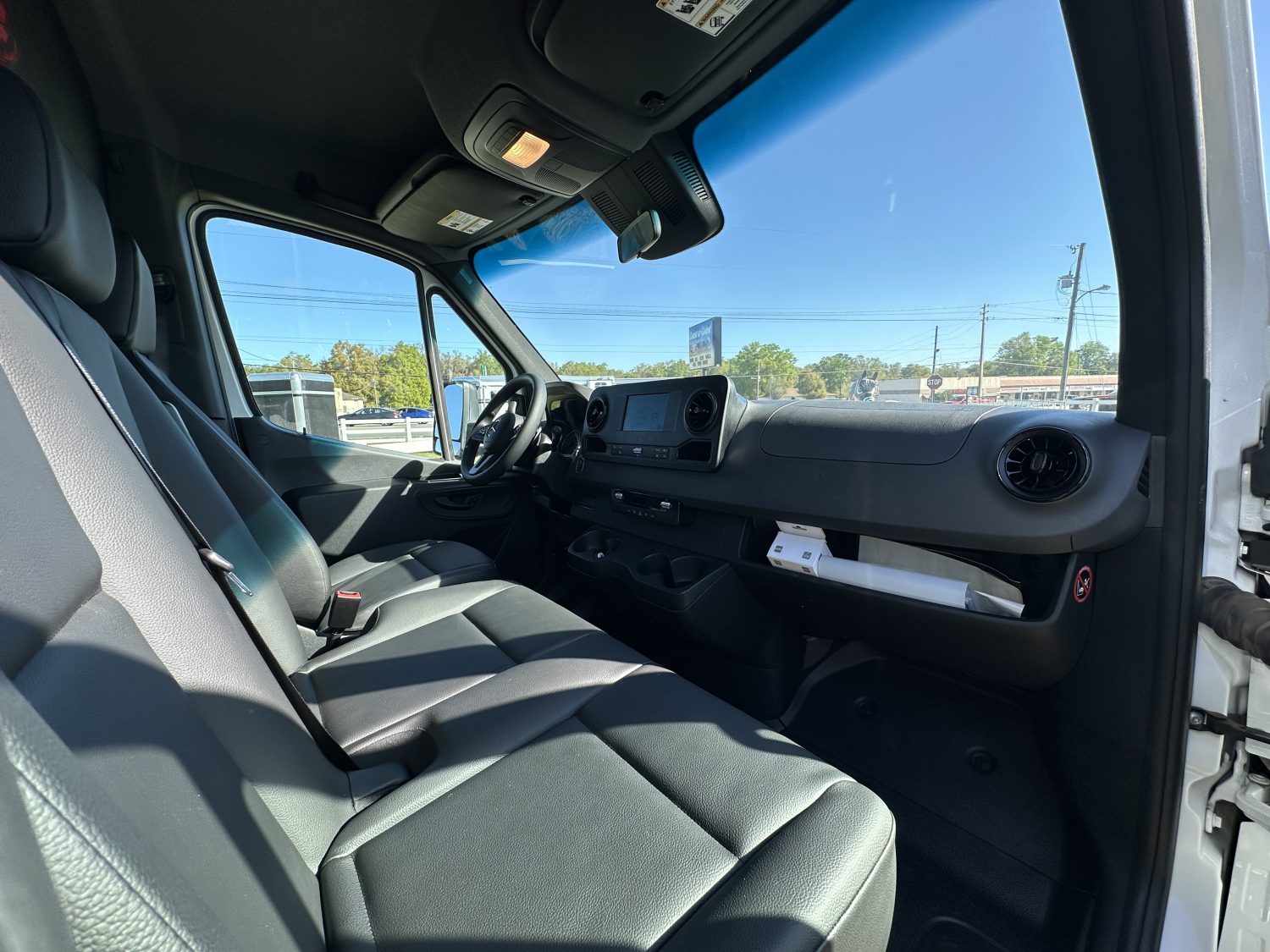

Cab & Chassis
Mercedes Sprinter 170″ 3500XD or 4500XD
2.0L I4 Turbo Diesel
- 3500 XD GVWR 11030
Payload: 2,880 lbs - 4500 XD GVWR 12125
Payload: 3,975 lbs
